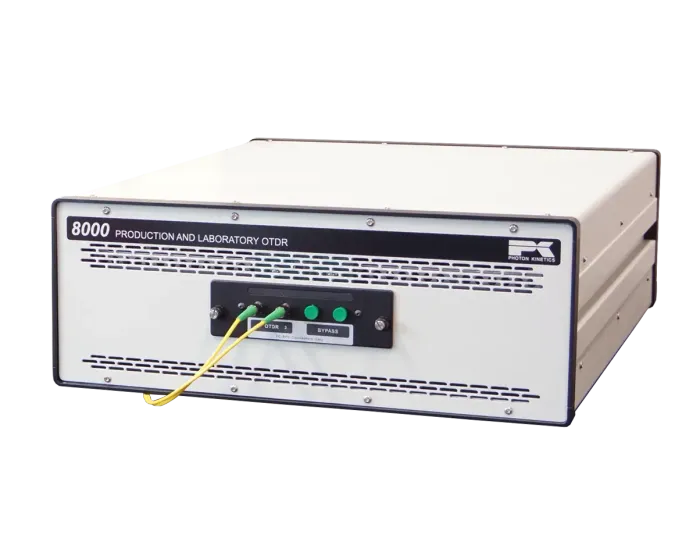

8000 OTDR

Highest quality OTDR measurements in the shortest possible time

Attenuation
Chromatic Dispersion
Mode Field Diameter

Overview

The 8000 OTDR is the industry standard OTDR for production testing applications. That's because the 8000 is the only OTDR designed specifically for optical fiber and cable manufacturers. Its "performance first" optical design delivers the most linear, lowest noise signatures in seconds, and its Windows operating system facilitates integrating the 8000 with manufacturing information systems. The OTDR also features unique data acquisition capabilities, including noise-based averaging that significantly reduces measurement time, making it possible for manufacturers to minimize manufacturing costs and improve production output.

The 8000 is available in a variety of configurations to a wide range of OTDR testing scenarios.

Capabilities

OTDR Loss, Non-uniformity and Defects

IEC 60793-1-40, IEC 62033

Fiber Length

IEC 60973-1-22

Mode Field Diameter

IEC 60793-1-45

Spectral Attenuation

IEC 60793-1-40

Request a Quote

Features

High performance optoelectronic design

Maximizes dynamic range, minimizes averaging time
Provides unmatched linearity for highest quality loss measurements

Unique, high-speed data acquisition techniques

Reduce averaging time by as much as 95%

Highly configurable optical design

An optimal solution for almost every OTDR test application
Upgradable to change test capability as your test requirements change

Factory oriented design

Facilitates seamless data network interfacing and remote control

Comprehensive front panel and analysis software

Provides large, real-time signature display, automated analysis including attenuation modeling and MFD prediction

Spectral Configurations

Standard Single-mode Wavelengths

Scroll to view more specs

Options

1310, 1360, 1383, 1410, 1490, 1550 and 1625 nm

Standard Multimode Wavelengths

Scroll to view more specs

Options

850 and 1300 nm

Custom Wavelengths

Scroll to view more specs

Options

1060, 1240, 1570 nm and others available upon request

	Options
Standard Single-mode Wavelengths	1310, 1360, 1383, 1410, 1490, 1550 and 1625 nm
Standard Multimode Wavelengths	850 and 1300 nm
Custom Wavelengths	1060, 1240, 1570 nm and others available upon request
