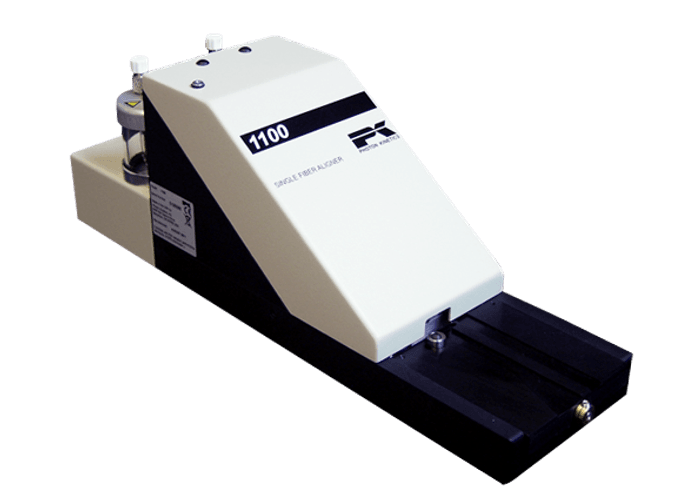

1100 Single Fiber Aligner

Fast, low loss temporary splices with no instrument feedback

Full Description

The 1100 Single Fiber Aligner uses patented fiber alignment concepts to produce virtually instantaneous temporary couplings for OTDR, dispersion, or any other optical fiber or component test that requires a fiber-to-fiber connection. It delivers low loss, low reflectance couplings on the first try virtually every time, without the need for test instrument feedback. As a result, temporary coupling times are minimized and manufacturing costs are reduced without compromising product quality.

Capabilities

Single Fiber Alignment
Single Fiber Alignment

Request a Quote

Request a Quote

Address

Features & Benefits

High Speed Couplings

  • No instrument feedback required
  • Virtually eliminates instrument downtime

Low Loss and Reflections

  • Maximizes instrument dynamic range and measurement accuracy

High Stability

  • Enables accurate OTDR-based measurement of mode field diameter

Key Specs

Coupling Loss

Typical
< 0.5 dB
Specification
< 1 dB

Coupling Reflectance

Typical
< -50 dB
Specification
< -40 dB
